Specifications
GPU

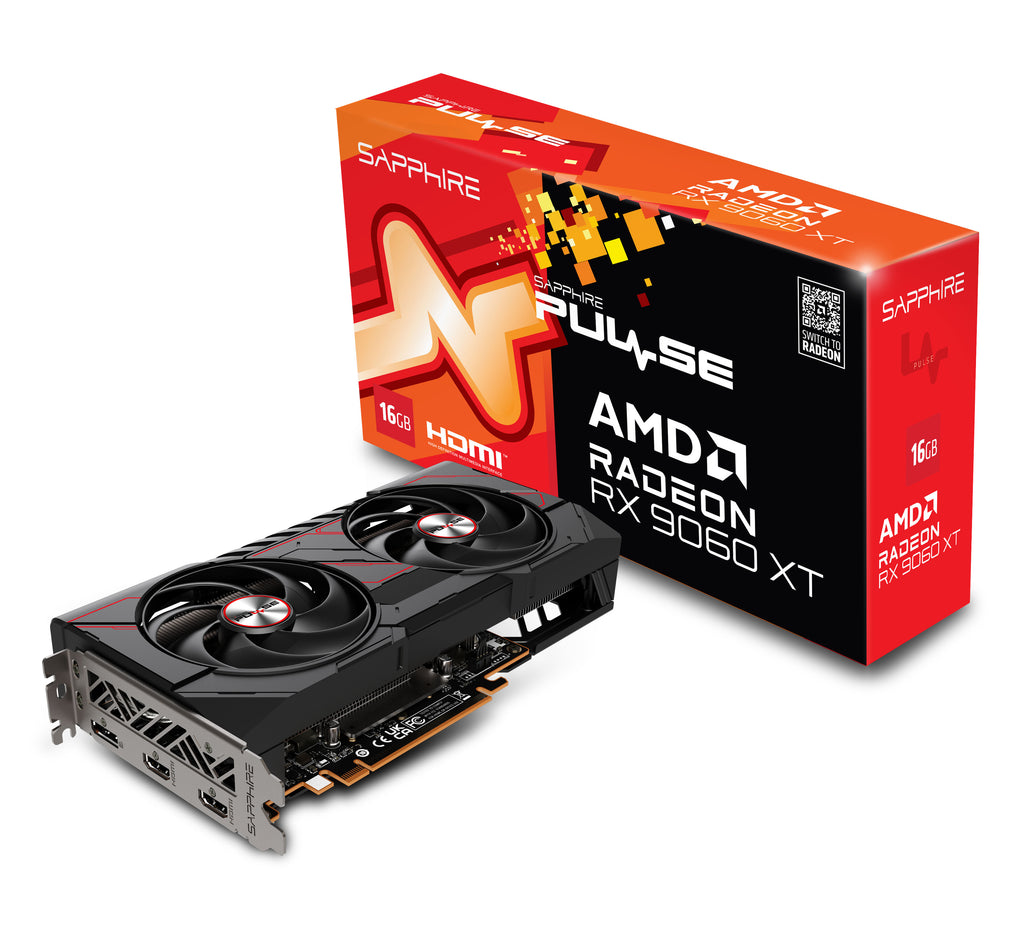

AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 ArchitectureEngine Clock
- Boost Clock: Up to 3290 MHz
- Game Clock: Up to 2700 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2048Compute Units
32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)Infinity Cache
32MBRay Accelerators
32AI Accelerator
64Memory Size/Bus
16GB/128 bit GDDR6Memory Clock
20 Gbps EffectiveDisplays
Maximum 3 DisplaysResolution
- HDMI®: 7680×4320
- DisplayPort™ 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
- 2x HDMI®
- 1x DisplayPort™ 2.1a
BIOS Support
- UEFI
Game Index
1440PSapphire Features
- Honeywell PTM7950 Thermal Interface Material (TIM)
- AeroCurve Fan Blade
- Free Flow
- FrameDefense
- Integrated Cooling Module
- Dual-X Cooling Technology
- High TG Copper PCB
- Optimized Composite Heatpipes
- Metal Backplate
- Sleeve Bearing Fans
- 9-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
- TriXX Supported
- TriXX Boost
AMD Features
- AMD RDNA™ 4 Architecture
- 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- DisplayPort™ 2.1a
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 technology
- AMD Radeon™ Anti-Lag 2 technology
- AV1 Encode/Decode
- AMD FidelityFX™ technologies
- Microsoft® DirectX® 12 Ultimate
- AMD Noise Suppression
- AMD Freesync™ technology
- AMD Infinity Cache
- 16 GB of GDDR6 on 128-bit Memory Bus
- AMD smart technologies
- AMD Software: Adrenalin Edition™ application
Cooler Type
- Dual-X Cooling
- AeroCurve Fan Blade
- Free Flow
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Sleeve Bearing
Form Factor
2.3 slot, ATX
Dimension: 240(L)X 124(W)X 46.1 (H)mmPower Consumption
170W Typical Board PowerOS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
- Minimum 450 Watt Power Supply
- 1 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
